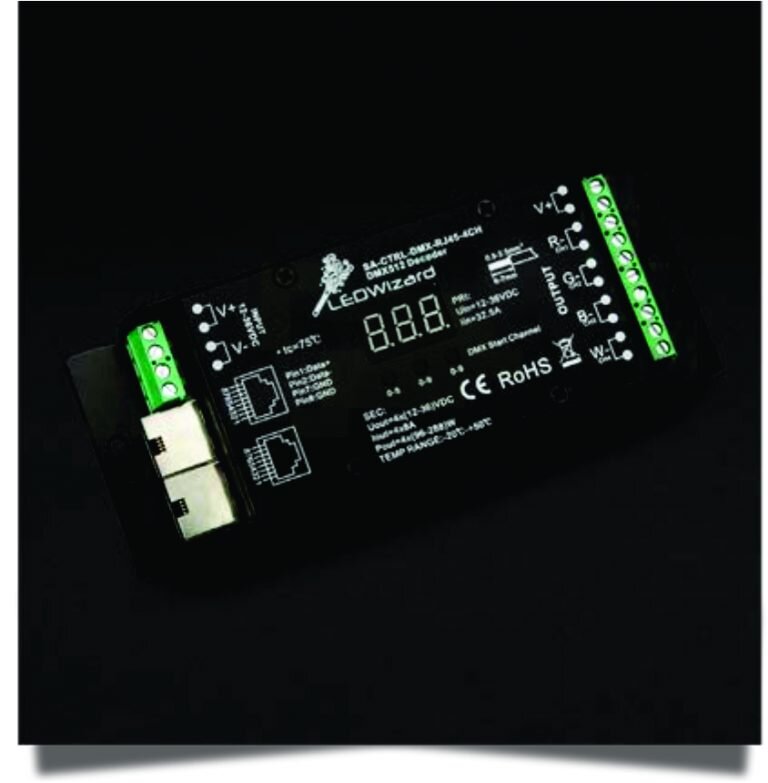

DMX 512 Decoder Rj45,12-36vdc, RGB-W 4-channel, 4x8a/ch
Product Description
Our 4 Channel DMX to RGB-W Controller is an excellent affordable choice for lighting and video professionals who require a very smooth color changing effect without a noticeable refresh rate.
It converts DMX signal to RGBW and it is highly configurable with several adjustable settings. Thanks to the crisp LED display screen, these settings can be easily adjusted to give you the best output for your application. In addition, this heavy-duty DMX512 controller is constructed with a robust metal housing that has mounting tabs on each side easy installation. It is designed with an RJ45 input/output port for easy connectivity. It can easily be daisy chained (inter-connected) with multiple units or connect to a DMX Console.
Features
DMX512 to RGBW Controller
Powerful 4 X 8A Outputs
RJ45 in/out port for easy DMX connection
Maximum power of 1152W at 36V DC
Output refresh rates of 200 & 1500Hz
Visual display for easy coniguration
Linear and logarithmic dimming
Excellent for audiovisual applications
Ability to combine output channels
DMX 512 Decoder Rj45,12-24vdc, RGB-WA 5-channel, 5x8a/ch
Product Description
Our 5 Channel DMX512 and RDM Decoder is a state of the art high end Decoder that converts DMX and RDM signal to RGBWA. It has a built-in visible digital display that is user friendly for easy setting or configuration adjustments. The unit offers the best and most reliable configurations for a quality and licker-free lighting display on audiovisual applications. This DMX & RDM Decoder has a variety of DMX input and output signal options including XLR5, RJ45, or detachable screw down connectors. This allows user to connect the Decoder to any type of DMX Fixtures or DMX Products.
With output Channels for both White and Amber this product is an excellent choice for using RGB with White or Amber to offer you a much wider range of color creation in the thousands including pastel colors.
Download the Product Overview
Download the Product Manual
Features
DMX512 Decoder with Remote Device Management (RDM) capability.
Metal housing for durability with integrated tabs for easy mounting.
5 adjustable output channels that are settable from 1CH – 5CH.
LED screen with button controls for easy parameter setting.
Multiple kinds of DMX input/output ports: RJ 45, XLR, Detachable Screw-down Terminal Blocks.
5 x 8Amps Output Channels and a common Anode to drive up to 960W at 24V DC
PWM frequency of 500 – 30000Hz to remove any lickers in audiovisual applications.
Several Gamma values settable from 0.1 to 9.9 for ultra-precise output dimming.
Multiple kinds of Decoding mode for DMX input processing and mapping.
Interchangeable PWM output resolution ratio of 8-bit or 16-bit.
Converts DMX Signals to RGBWA
Great For Audiovisual Applications
UL Listed Product For Safety and Durability
Flicker Free Output Performance
Bright LED Display For Easy Setup
Selectable 8-Bit or 16-Bit PWM Ratios
Adjustable PWM Frequency (500Hz – 30000Hz)
Fully Adjustable Micro-Dimming
12-24V DC Operation
5 x 8amps Channels
Max Power of 960W at 24V DC
LLS-LC-OL-DMX-PX DMX 512 Decoder Rj45,12-24vdc, RGB 3-channel, 3x8a/ch
The most popular DMX Decoder style LLS-24500, which allows you to connect your RGB LED Lights, LED Lighting, LED Ribbon strips or RGB LED Modules to DMX512 or DMX1990 Lighting controllers. Then by using PWM & DMX, you can change the color and dimming of your RGB LED lights. For 12 to 24VDC systems only. 5A per channel with a maximum power of 180W / 12VDC or 360W / 24VDC. For use with 4 pin, 3 loop, common anode style RGB LED and LED Lighting. Can be connected to DMX512 signal using RJ45 connectors and Cat5 cables. Unit has DIP switches on the side to manually change the DMX address of each driver. Each PX24500 Driver uses 3 DMX addresses. RGB LEDs and power supply are connected using screw down style connectors. RoHs, CE approved
SPECIFICATIONS
Model DMX Driver PX24500 RGB LED
SKULC-OL-DMX-PX
Dimensions 6.9" X 1.75" X 1.38"T
DMX Type DMX 512, DMX 1990
DC Power12 - 24VDC, 5A x 3CH
Watts12VDC: 180W 24VDC: 360W
Refresh Rate433Hz
Rating Dry
Warranty Period1 Year
DMX Wireless Transmitter Receiver
Our Wireless Transmitter/Receiver is used in any LED lighting installation that requires the use of DMX technology for lighting control. Until now, any DMX enabled LED lighting fixture, had to be wired with DMX cable in order to control the lights. This becomes a problem when there are long distances between the control system and the lights. Using our DMX Transmission and Receiver System, DMX enabled lights can be controlled easily up to 2100 feet away. The unit has 16 different selectable ID Groups, which can be easily selected in order to have many units working in the same environment without interfering each other. This is especially useful when there are big installations being done which require many channels or DMX units to work in different configurations.
Features
Can Be Used As Transmitter Or Receiver
Can Be Used As A Data Repeater Over Long Distances
2.4Ghz ISM Transmission Technology
(2)x(8) Bit LCD Backlit Display
Four Output Power Levels
Max Transmission Distance 2100 Feet Un-Obstructed
126 Frequency Hopping Auto Selection And Channel Lock
Up To (16) Different ID Groups For Big Installations
Max Transmitting Power 20DBM
Receiving Sensitivity: -94DBM
DMX Signal Terminal Three Pin Female Male XLR
