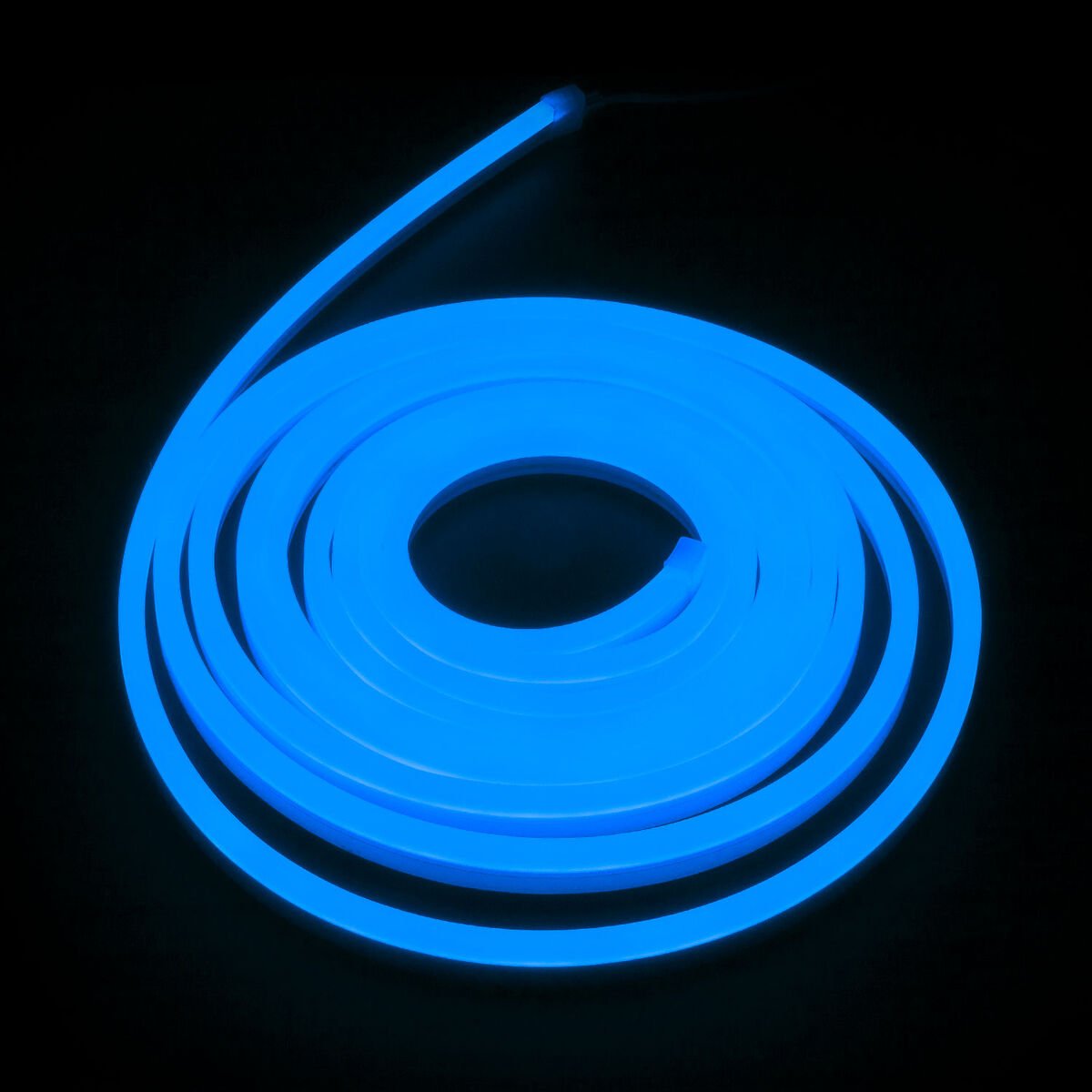

3D LED NEON TAPE SERIES

60W, 24V, IP67

Lebow Lighting’s 3D LED Neon is a state of the art neon LED strip simulating the effect and look of neon in a continuous well balanced light.

The 3D LED Neon is fully dimmable. It features a soft adaptable and flexible body in a square shape giving the appearance of seamless light emitting from three sides of the strip. The unit body is side bending in the opposite direction as the top light output.

The 3D LED Neon utilizes a high density strip to project an incredibly bright, dotless light evenly across its 16.4ft overall length with no blemishes or hot spots. Small cut points of less than 2 inches allow the 3D LED Neon to easily be cut to length and customized to fit any style of project or environment.

Mounting the 3D LED Neon is easy with the optional mounting channel and clips. Endcaps and waterproofing compound are available to easily waterproof custom cut sections of 3D LED Neon.

Each 3D LED Neon strip runs on a low voltage of 24V using only 60W per spool. It is engineered to achieve the same visual effects as standard neon lights with reliability and ease of installation. No high voltage transformers, dangerous neon gases, or fragile custom glass tubes to deal with.

Product Features:

• Three Sided Light Emission

• Flexible & Cuttable

• Side Bending

• Cut Points Every 2in

• Fully Dimmable

• 16.4ft Spool

• Features a 6.6ft Waterproof Cable w/ Female Barrel Connector

• Low Voltage Product at 24V - 60W Per Spool

• Fully Waterproof, Rated at IP67

• Indoor / Outdoor Application

• Product Comes Ready to Plug & Play

• Perfect for Accent Lighting, Linear Lighting and In-Wall Lighting

• Up to 170 Lumens/Foot

• LEDs per Foot: 3

• Watts per Foot: 3.7W

• Watts per Spool: 60W

• Max Power: 60W

• LED Type: SMD 2835

• Beam Angle:140º

• Warranty: 3 Years

• Weight 2 lbs

• Dimensions L: 16.4ft x W: 0.32in x H: 0.62in

• IP Rating: IP67

• Working Temperature-10F-140F

• Certificates: UL, RoHS

39" Mounting Channel for 3D LED Neon

39" Bracket for 3D Neon is an excellent linear lighting solution for holding Neon3 lights straight and in place permanently. This product is designed and custom-made to fit only 3D LED Neon lights.

The 39 inch bracket is easy to install with 3 mounting holes for stability. It is perfect for projects that require long straight runs, eliminating the need of using multiple brackets and avoiding sagging LED strip lines.

The bracket for 3D LED NEON is made from high quality aluminum that helps quickly dissipate heat created by the LEDs, doubling the lifetime of the LED lights. Additionally its silver coating easily blends in with any environment.

The simple push-in design of the bracket makes for a hassle-free installation. Simply line up the bottom end of the 3D LED NEON at the beginning of the bracket and apply pressure upon the 3D LED NEON all the way to the bottom of the bracket.

In the installation process, we advise you to mount the bracket first and then install the Neon3 lights. Please be advised brackets do not include screws.

Product Features:

• 39 inch Overall Length

• Simple Push-in Design

• Tough Aluminum Construction

• Features 3 Mounting Holes for Stability

• Perfect for Long Straight Runs

• Great for Keeping the 3D LED NEON in Place Permanently

Please keep in mind:  When you take off the 3D LED NEON from the 39 inch bracket for adjustments. Due to the 39in bracket's length, gently pull the 3D LED NEON out of the bracket inch by inch. Do not tug on it, the 3D LED NEON is meant to bend sideways not forward and back. If you pull the 3D LED NEON fast off the bracket, the 2in cut points can be split at the contacts. Once this happens you will not be able to fix it. You'd have to cut it at the next cut point.

Warranty: 3 Year Warranty, Weigh: 0.20 lbs, Dimensions: L: 39.38in x W: 0.4in x H: 0.47in, IP Rating: IP33, Product Color: Silver Aluminum Housing, Working Temperature: - 30ºF to 130ºF

38.5” Flexible Bracket for 3D LED Neon

Flexible Bracket for 3D LED NEON is an excellent solution for holding 3D LED NEON lights in place permanently with custom designs. This product is designed and custom-made to fit only 3D LED NEON.

The 38.5 inch bracket is easy to install with 4 mounting holes for stability. It is perfect for projects that require turns, curves, and crafting custom shapes, eliminating the need for use of multiple brackets and avoiding sagging LED strip lines. The high quality aluminum is constructed to easily bend making custom shapes like gentle slopes, tight curves, and 90º corners quick to create.

The simple push-in design of the bracket makes for a hassle-free installation. We advise you to mount the bracket first, securing the bracket with the included screws, and then install the 3D LED NEON lights. When installing, bend the bracket as few times as possible. Excessive bending of the bracket, especially in one place, may cause the bracket to weaken and break. .

Product Features:

• 38.5 inch Overall Length

• Compatible with 3D LED NEON

  Simple Push-in Design

• Flexible Aluminum Construction

• Features 4 Mounting Holes for Stability

• Perfect for Easily Marking Curves and Shapes

• Great for Keeping the 3D LED NEON Strip Lights in Place Permanently

Please keep in mind:  If you need to remove the 3D LED NEON from the bracket, gently pull the Neon3 out of the bracket inch by inch. Do not tug; the 3D LED NEON is meant to bend sideways, not up and down. If you pull the 3D LED NEON fast off the bracket, the cut points can be split at the contacts. Once this happens you will not be able to fix it. You will have to cut the unit at the next cut point.

Warranty: 3 Year Warranty , Weight: 0.15 lbs, Dimensions: L: 38.5in x W: 0.4in x H: 0.47in, IP Rating: IP33, Product Color: Silver Aluminum Housing, Working Temperature: -30ºF to 130ºF

1.19” Mounting Clip for 3D LED Neon

The Bracket for the 3D LED NEON is the perfect bracket for mounting the 3D LED NEON to a variety of surfaces. The bracket has been designed to help manage small curves and tight turns and also permanently hold the 3D LED NEON in place. The simple push in design provides a smooth installation and easy adjustment.

Advantages:

• Fits 3D LED NEON

• Simple Push In for 3D LED NEON

• Design Grabs Strip to Hold Permanently

• Weatherproof Material

Main Features:

• Mount brackets along a parallel line for straight lines.

• Can be used to Mount in Different Angles to Create Curves and Shapes.

• Warranty: 3 Years, Weight: 0.05 lbs, DimensionsL: 1.19in x W: 0.4in x H: 0.47in, Product Color: Silver

Cable End Cap for 3D LED NEON

The Cable End Cap for the 3D LED NEON is use to create a waterproof seal between the waterproof cable and the3D LED NEON Strip Light. Simply add the waterproof glue onto the End Cap, slide it over the soldered connection and your lights will have a waterproofed power connection.

The Cable End Cap is also designed to protect soldered connections from damage caused by erosion, UV rays, and exposure to dust. The transparent case helps ensure that the end cap is securely attached to the strip but also blends in with the 3D LED NEON to match any type of environment.

When using the waterproofing glue, we recommend letting the assembly dry for 24 hours before handling.

Advantages:

• Designed to Protect the Connection Between the Waterproof Cable and 3D LED NEON Strip Light

• Clear Case to Ensure a Secure Fit

Main Features:

• Use for Sealing and Waterproofing the 3D LED NEON Strip Cable

• Use with Waterproofing Glue for a Complete Waterproof and Sealed Connection

• Warranty: 3 Years

• Weight, 0.05 lbs

• Dimensions L: 0.66in x W:0.39in x H: 0.71in

• IP Rating IP67 with Waterproof Glue,

• Product Color Clear

• Working Temperature-20-140F

End Cap for 3D LED NEON 60W 24V DC

The End Cap for 3D LED NEON is use to seal and finish the ends of the 3D LED NEON. Add the waterproof glue for a complete seal and IP67 waterproof protection. The simple push on design ensures a tight and sealed fit. The clear case helps make sure the end cap is pushed on far enough. When using the waterproofing glue, we recommend letting the assembly dry for 24 hours before handling.

Advantages:

• Design for a Secure Fit

• Clear Case to Ensure a Perfect Fit

Main Features:

• Great for Sealing and Waterproofing the 3D LED NEON

• Use with Waterproofing Glue for a Complete Waterproof and Sealed Connection

• Warranty: 3 Years, Weight: 0.05 lbs, Dimensions: L: 0.53in x W:0.39in x H: 0.71in, IP Rating: IP67 with Waterproof Glue, Product Color: Clear, Working Temperature: -20-140F

1oz Waterproofing Compound

The 1oz Waterproofing Compound is a silicon based compound  that is specifically used in waterproofing 3D LED NEON

Thanks to its special formulation, the Waterproofing Compound ensures products will be safe & dry from all weather conditions.

Main Features:

• Waterproofing Compound for Waterproofing LED Strip and more

• Special Formulation for Long Term Waterproofing

• Used with Silicone End-Caps, Power Adapters, and Strips

• UV and Heat Resistant

• Contains 1 oz. Silicone Rubber Sealant

• Transparent Color

15 ft Waterproof LED Strip Extension Cable

15 Foot Waterproof extension cable is mainly used to create longer waterproofed power cables for any of our strips. This product consists of a translucent cable 15 feet long that has a 5.5mm female barrel connector on one end and a 5.5mm male barrel connector on the other end.

Each cable creates 100% waterproof connections with the included screw on covers.

Uses:

• Create waterproofed connection from power source to any of our LED Neon strips.

• Interconnect several units to create even longer power cables.

• Use as an easy way to create power extension cables.
